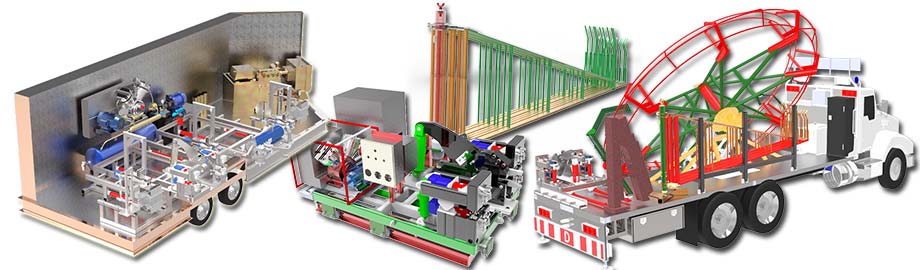

FEM Products

Pre-configured and Customizable Products

Frontier Equipment Manufacturing, in association with its various partners, are constantly designing and building original and innovative products. Please find below the products FEM currently has to offer.

Pinch-Roll and Shear

View in 3D

Specialized for any need

Standard Features

Total self containerd
Fits in standard 1-tonne pickup truck
Electric over hydraulic remote control
Slide out
Stabilize outriggers

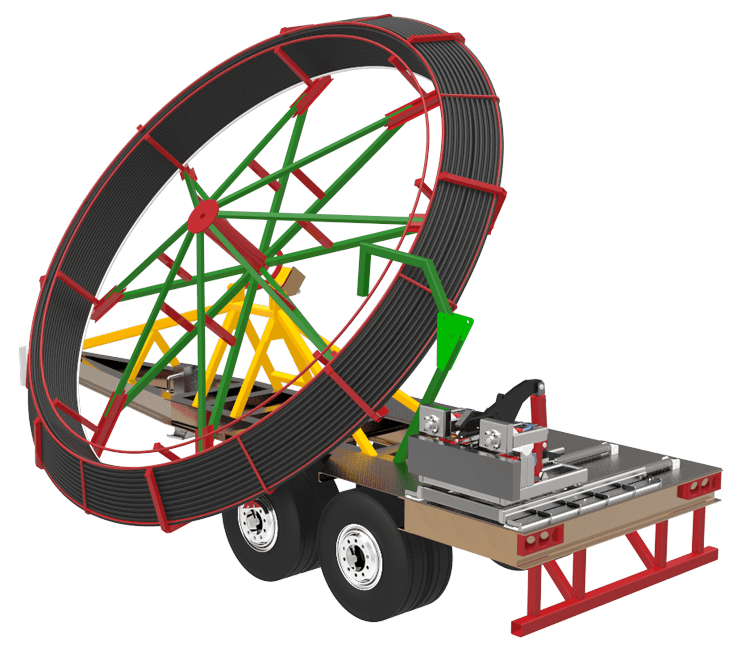

Trailers

^back to top

Perform any task, anywhere.

Standard Configurations

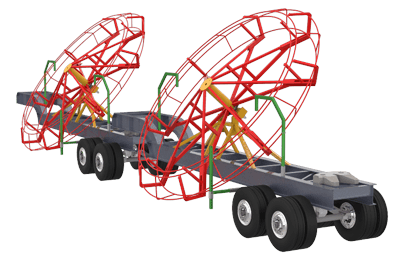

B-Train
Double Fifth Wheel

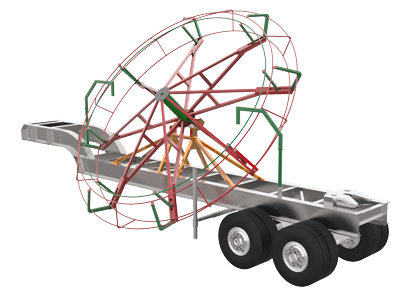

Single Fifth Wheel
Pintle Hitch

Standard Features

Hydraulic Spool Tilt (12V hydraulic power unit)
Spool tilt locking arm
2 safety arms (pivoting or folding)
Foldable wide load light
Telescopic rod guide stand

Optional Features

Pinch Roller
Rod Shear
Spool driver motor
Spool braking system
Hydraulic Safety Arms

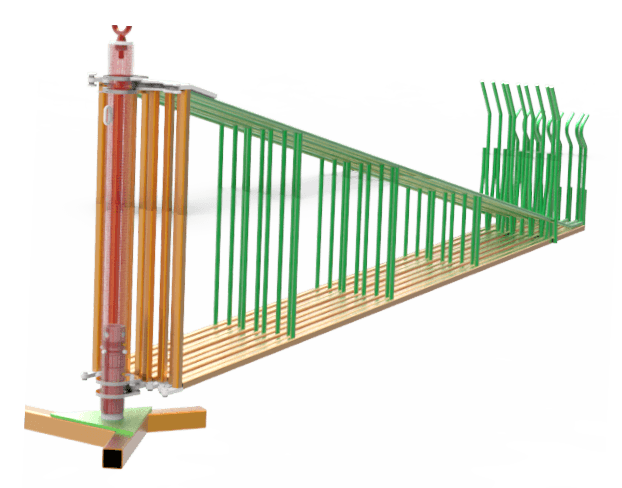

Collapsible Reel

^back to top

Save space when not in use

Standard Configurations

Single Pocket
Double Pocket

FFW

^back to top

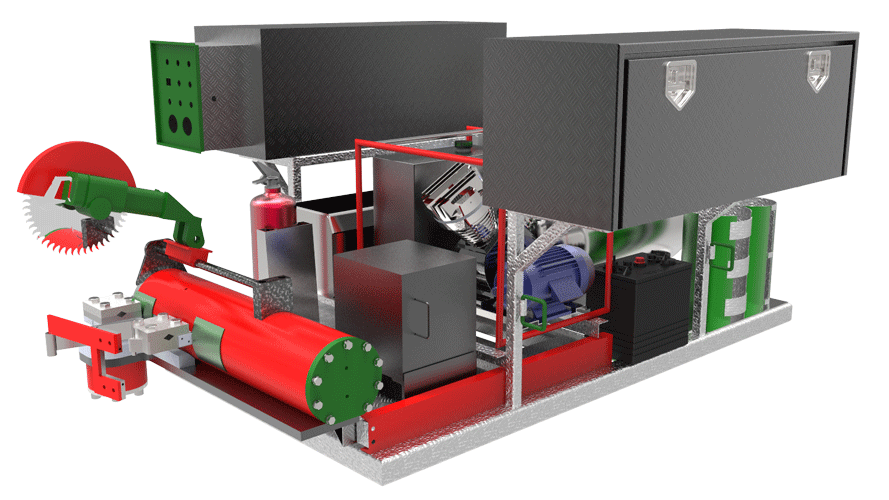

FFW - Field Forging Welder

Our portable fusion welder are special gas fired systems that are proven to produce exceptional welds to any rod. The result is an extremely mobile, portable and cost effective system. The simplicity and portability of the welder results in a reduction of service time and expenses.

Features

Fully Self-Contained and fits into most long-box truck
Sturdy design maximize weld alignment and concentricity
Actuated slide-out/slide–in
High air capacity with increased CFM for better quenching
Limit switch for automated displacement
Hydraulic System controlled with remote
Pin Storage box and 2 toolboxes
Heated oxy-acetylene bottles

Capabilities

Custom pin to pin string fabrication
Replacement of top or bottom pin
Repairs to broken rod
Removal & replacement of worn sections of rod

RMU

^back to top

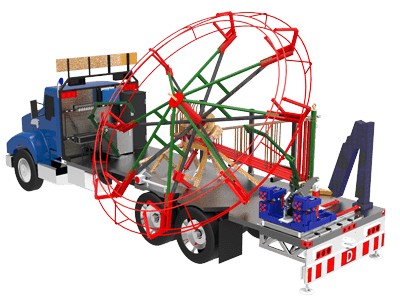

Rod Manipulation Unit

Standard Configurations

Tri-axles
Tandem drive
Fit any truck chasis

Specifications

speed - 40m/min (125 ft/min)
Capacity - up to 25 000 lbs of rod (10 000 kg)
DOT approved

Standard Features

2 hydraulic safety arm
Driving motor
Spool braking system
Telescopic rod guide stand
Pinch roller (slide out)
Rod shear (slide out)
3 ton picker crane
Service reel rack (tiltable)
2 tool boxes
1 cabinet

Optional Featurs

rod counter
Rod welder (only available on tri-axles
Wirless remote
Pivoting pinch roller and shear
High capacity picker crane
Tow behind hitch
Collapsible reel
Transport reel

Reel Accessories

Devil clamp
Reel pivoting stand

RPU

^back to top

Rod Repair Unit

Standard Features

Totaly self contained unit in enclosed trailer
All equipment are sliding out for easy access
20 ft trailer
Hydraulic power unit
Air comporessor
Generator
Oxy-Acetylene bottles
Pinch-Roll + Shear
Rod Welder
3 Rod handling arms

Gripper

^back to top

Public information to be released soon.

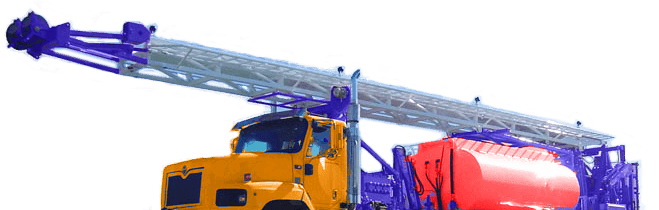

Flushby

^back to top

Mobile rigging

General Operation

General workover operation for Sucker rods down hole string
Well stimulations
Assembling/disassembling of completions
Preparation of production wells for pecial treatment
Pump and circulation operations

General Features

Heavy duty ai suspensions
60 series Detroit engine set between 420-500 HO to customer specifications
Allison 4700 oilfield service transmission
High and Low pressure manifold
Leveling jacks
Guards and covers for all moving components
Mast with crown block
Drawworks winch
Auxilliary winch
Triplex high pressure pump
2 fluid tanks with additional 400L tank
Fall arrest device located at crown

Mast

Center piece	Telescopic
Max Length	46 ft
Free height over ground	55 ft
Max work length	44 ft
Max hook load	440,000 lbs
Mast grade	9 deg

Hydraulic System

3000 PSI hydraulic system	Hydraulic tank
Touch screen control	Vacuum cleaner
High pressure filters	Valve flow adjustment
Compensation pump	Return filters
Accumulator system

Crane

Fassi M20A.13
3 Hydraulic sections
Corner mount articulating crane
Lifting capacity of 3525 lbs at 4'5"
Lifting capacity of 1135 lbs at 13'3" (full extension)

Pumps

Triplex Pump	SPM TWS 600 Plunger diameter: 3: Drive: hydraulic Max input power: 600 BHP/447 kW Strok: 6:/152.4mm
Loading Pump	Gear pump Q max: 800 l/min p max: 7 bar
Booster Pump	Centrifugal pump Q max: 1000 l/min p max: 5 bar

Winches

Main Winch	Pullmaster HL25 25,000 lbs single line pull in low gear 5,350 lbs single line pull in high gear Meets API 7K, ISO 14693, API SPEC Q1, ISO - TS 29001
Secondary Winch	Pullmaster PL5 4000 lbs capacity

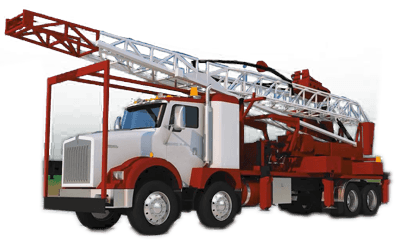

Standalone Rig

^back to top

Independent operation

Features

Slanted operation
Operator protection system
Touch screens and joysticks
Remotely operated safety locking system
Electric over hydraulic system saves 2/3 of hydraulic hoses
Optical Reader (diameter, speed, length) - realtime pull load and feed
Integrated H2S detection system with visual, auditory and remote alarms
Built-in working lights

Service Rig

^back to top

Dependable operation

Public information to be released soon.
